How Does A Laser Tube Cutting Machine Work?

In this article, we will explore the inner workings of a laser tube cutting machine, shedding light on the key processes that make it a cornerstone in modern manufacturing.

Laser tube cutting machines have revolutionized the manufacturing industry, providing an efficient and precise method for cutting tubes and profiles. These machines utilize advanced laser technology to achieve intricate cuts with unparalleled accuracy. In this article, we will explore the inner workings of a laser tube Cutting Machine, shedding light on the key processes that make it a cornerstone in modern manufacturing.

1. Introduction to Laser Tube Cutting Machines

1.1 Overview:

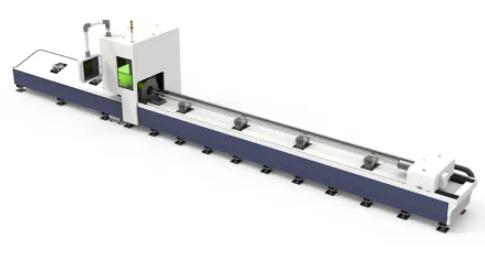

A laser tube cutting machine is a computer-controlled tool designed for the precise cutting of tubes and profiles made from various materials, including metals and plastics. The machine employs a laser beam as the cutting tool, guided by a computer numerical control (CNC) system to create intricate and accurate cuts.

1.2 Diverse Applications:
Laser tube cutting machines find applications across industries, from automotive and aerospace to furniture and construction. Their versatility makes them an indispensable tool for fabricating components with complex geometries and tight tolerances.

2. laser cutting Technology

2.1 Laser Generation:
Laser tube cutting machines utilize a laser beam generated by a laser resonator. The resonator emits a concentrated beam of coherent light, typically amplified through mirrors or optical fibers. The laser source can be of different types, such as CO2 lasers or fiber lasers, each offering specific advantages based on the material being cut.

2.2 Focused Precision:
The laser beam is directed through a lens that focuses it to a tiny, intense spot. This high-energy beam is capable of melting, burning, or vaporizing material with exceptional precision. The focused laser serves as the cutting tool, creating clean and accurate cuts along the tube or profile.

3. CNC Control System

3.1 Computerized Precision:
The CNC control system is the brain of the laser tube cutting machine. It interprets the digital design or CAD (Computer-Aided Design) file, converting it into precise instructions for the machine's movements. CNC technology allows for intricate and repeatable cuts, ensuring consistency in the manufacturing process.

3.2 Programmable Flexibility:
The CNC control system offers programmable flexibility, allowing operators to create a wide range of cuts and patterns. This versatility makes laser tube cutting machines suitable for producing complex components with varying geometries.

4. Material Handling and Feeding

4.1 Automated Loading:
Laser tube cutting machines often feature automated systems for loading tubes into the machine. This reduces manual intervention and increases efficiency in the production process. Automated loading systems can handle a variety of tube sizes and lengths.

4.2 Precision Feeding:
Once loaded, the tube is fed through the machine in a controlled manner. Precision feeding ensures that the tube is accurately positioned for the laser cutting process. This meticulous handling contributes to the overall accuracy of the cuts.

5. Real-Time Monitoring and Quality Control

5.1 Sensors and Cameras:
Laser tube cutting machines are equipped with sensors and cameras for real-time monitoring. These systems enable the machine to adjust parameters dynamically, compensating for any deviations in the material or environmental conditions. This real-time feedback ensures consistent quality in the final product.

5.2 Quality Assurance:
Quality control features, such as edge detection and monitoring for defects, play a crucial role in ensuring the accuracy and integrity of the cuts. Laser tube cutting machines are designed to detect and rectify any discrepancies during the cutting process, contributing to high-quality output.

Conclusion: Precision in Every Cut

In the world of modern manufacturing, the laser tube cutting machine stands as a symbol of precision and efficiency. By harnessing the power of laser technology, coupled with advanced CNC control systems, these machines deliver intricate cuts with unmatched accuracy. From automated material handling to real-time monitoring, every aspect of their design is geared towards achieving excellence in tube cutting.
